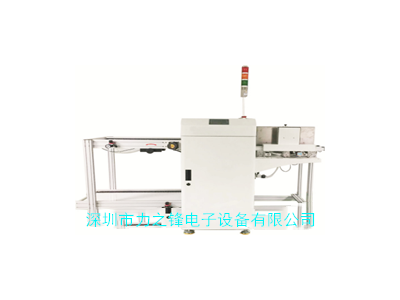

| 1) Overall dimension: L2200 * W1300 * H1200± 30mm |
| 2) Special aluminum profile guide rail and special Qianniao plastic chain |
| 3) 90W production brake motor is driven by ball screw to lift Magazine step by step |
| 4) The feeding box transmission motor is a 15W constant speed platform motor |
| 5) Pneumatic clamp structure |
| 6) The specification of Magazine is (L) 535 * (W) 530 * (H) 565mm |
| 7) The maximum specification of PCB is (L) 525 * (W) 460mm |
| 8) Stepping motor is used for belt conveying |
| 9) The falling plate action parts are made of aluminum alloy |
| 10) 7 ㎜ flat belt is used as the conveying belt |
| 11) Cylinder solenoid valve combination push down PCB |
| 12) Direction: left to right |
| 13) The lifting platform pitch is selected as 10, 20, 30, 40 |
| 14) Transmission height H=920± thirty |
| 15) Xinjie PLC programmable controller control |
| 16) It has the function of automatic loading and unloading |
| 17) The operation control panel is a display control true color touch screen; |
| 18) Pneumatic element (the position of push plate cylinder is adjusted by screw rod) |
| 19) Power supply: 220V 50HZ |
| 20) Air source: 0.4-0.6MPa |
| 21) Number of fully loaded storage plates: 50PCS |
| 22) One set of electric control box |
